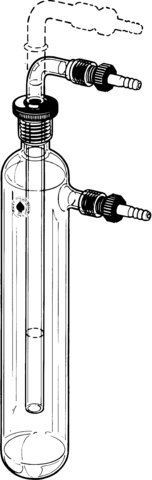

Ace vacuum trap with threaded inlet/outlet

NB.43

Consists of body with Ace-Thred that accepts adjustable inner tube secured by nylon bushing and FETFE^® O-ring.

Unit has been modified with the addition of #15 Ace-Threds on inlet and outlet for use with UHDPE tubing connectors for safe and easy connect/disconnect of tubing. Tighten connector with bushing to compress silicone O-ring to make a leak tight seal.

All of the traps can withstand a minimum of 44 psi pressure.

FETFE is a registered trademark of Ace Glass, Inc.

Ace Glass 874668

350 mm

90 mm

24 mm
