Ace pressure filter reactor system

NB.51

Take replacement CAPFE O-ring, Ace 7855-878.
Rugged heavy-wall reactors with a Schott flange with shallow O-ring groove at the top for connection to a jointed head with quick-release clamp. These complete bench top systems include all components required for operation except an IKA^® stirrer motor, model RW 20.n, which is recommended for all reactor sizes. See the stirrer section for a listing of these products.

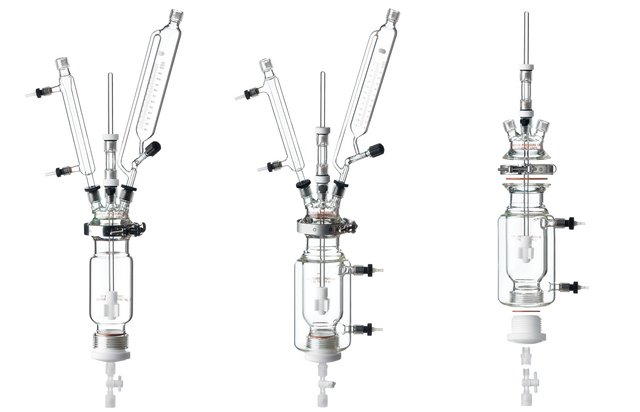

Choice of two models:

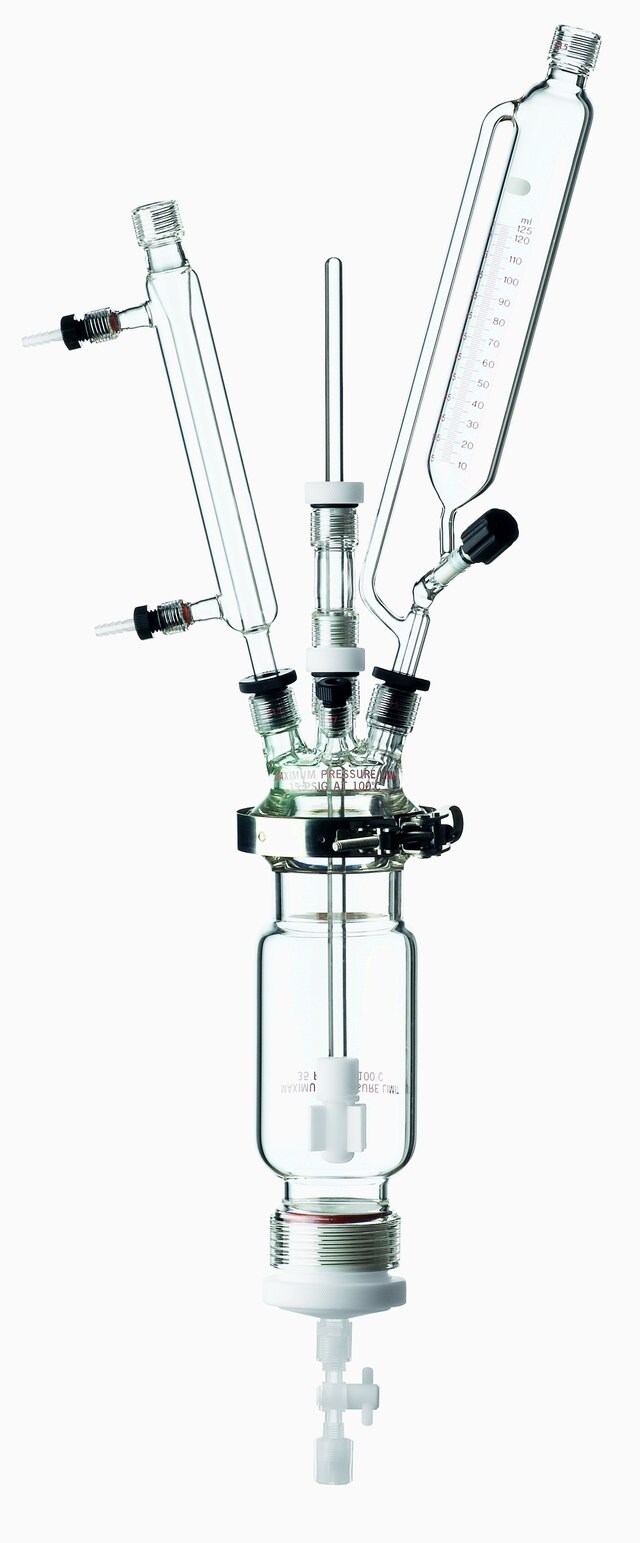

Pressure filter reactor - rated 35 psig @ 100℃, Ace Threds allow use of vacuum or pressure to drain liquid from reactor, 2 x #15 and 1 x #7 AceThreds on 60 mm head, 3 x #15 and 1 x #7 Ace Threds on 100 mm head

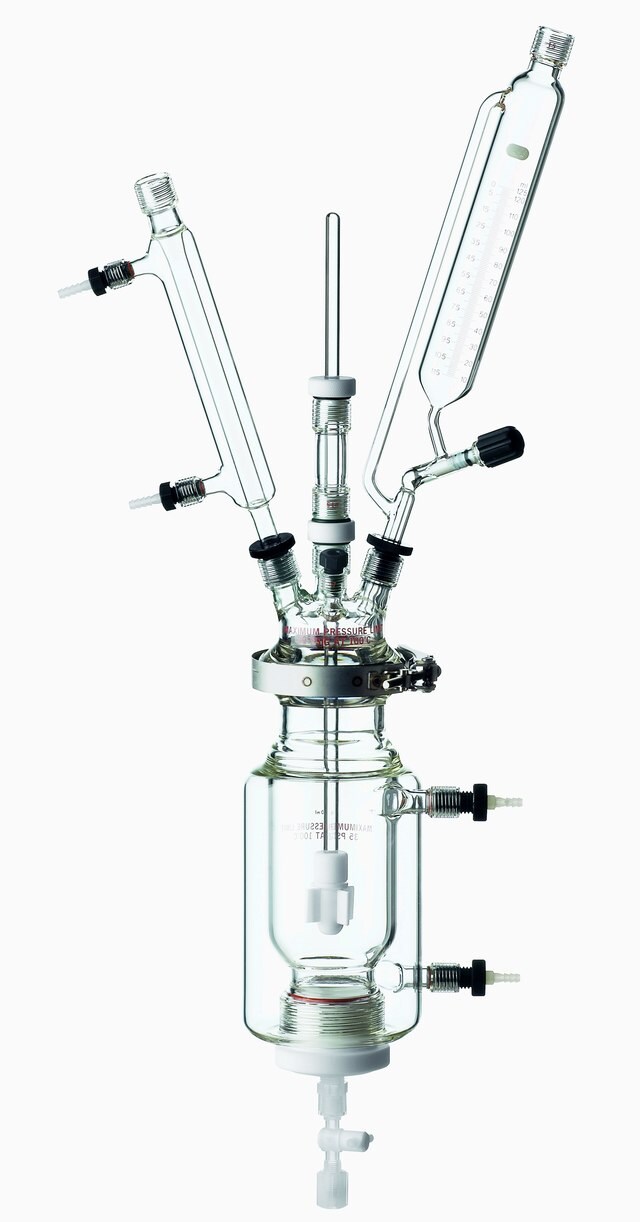

Jacketed pressure filter reactor - as above with jacket for heating or cooling reaction

Applications:

• Oxidation/reduction reactions where the particulate can be drawn down to a filter cake
• Nanotechnology where the material must be contained and the filtrate is the actual product or nano-particle needed
• Simple Bioreactor as gases can be introduced through pressure head via a pressure or NPT fittings and tubing
• Paints/pigments other viscous solutions

Both systems include:

• Heavy-wall glass reactor body and head, CAPFE O-ring and SS quick-release clamp
• Ace Thred PTFE bottom filter adapter, o-ring, and filter support, PTFE thread adapter, o-ring and PTFE bottom valve. Dead space below frit is 4.5-5 mL liquid w/ water viscosity +/- 0.5 mL
• Non-flaking stir shaft bearing
• Glass stir shaft with PTFE agitator assembly
• Addition funnel
• West condenser
• Support package including holed plate, stand, chain clamp, and holder
• PTFE stoppers
• Chuck adapter for IKA stirrer motor

IKA is a registered trademark of IKA-Werke GmbH & Co. KG

35 psi pressure (at 100℃)

83 mm × 185 mm

600 mL

60 mm

#50 Ace-Thred
