Tubing Adapters with Torion^TM Connection

NB.35

The unique Torion connection ensures an airtight seal between tubing and reaction vessels when transferring air-sensitive materials.

⁵/₁₆ in. O.D fits a #8 Torion, ¹/₂ in. O.D. fits a #14 Torion, and ³/₁₆ in. O.D fits a #5 Torion.

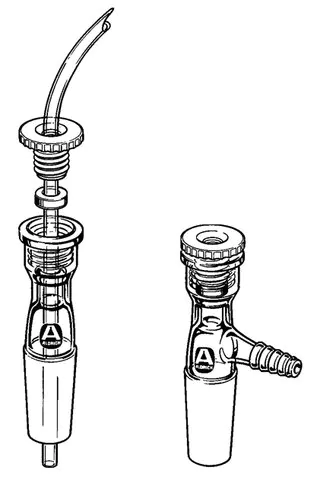

• Hard-wall transfer tubing (e.g. PP or PTFE) is inserted through the threaded polypropylene bushing and PTFE-coated sealing ring of the adapter
• Turn the bushing to make an airtight compression seal with the tubing
• Use the optional solid-glass plug to make an airtight Torion seal when the transfer tubing is not in use
• O.D. refers to the tubing outer diameter

Torion is a trademark of Bibby Sterlin Ltd.

male Joint: ST/NS19/22

3/16  in.
