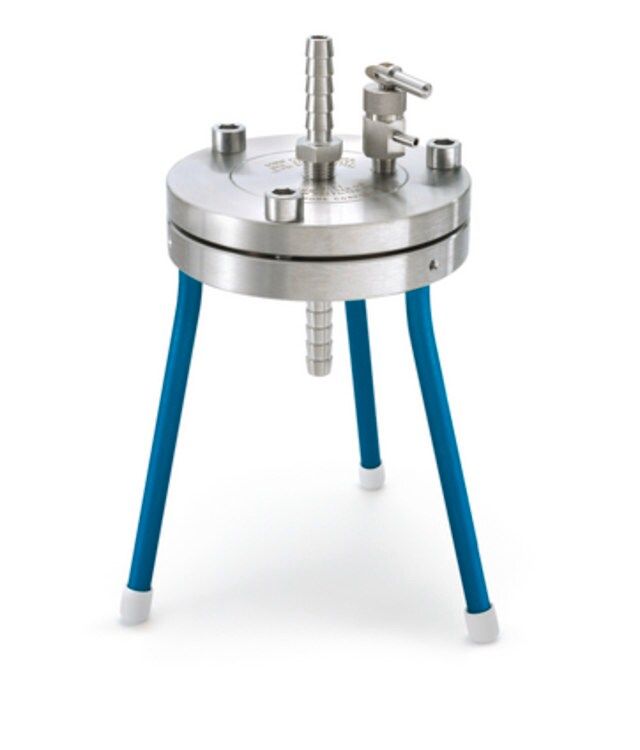

Filter Holder 90 mm, stainless steel
基本信息
| eCl@ss | 32031613 |
| NACRES | NB.24 |
| General description【一般描述】 | The Stainless steel filter holders are designed to ultraclean or sterilize liquids or gases by pressure filtration. PTFE-faced support screens permit autoclaving with membranes in place. YY3009000 Filter Holder, 90 mm, stainless steel Replacement Parts XX2504705 Hose Adapter, 1/4 in. NPTM to 3/8 in. I.D. XX4204708 Vent/Relief Valve YY3009053 O-rings, 90 mm filter housing, PTFE YY3009054 Support Screen, PTFE-coated YY2209058 Underdrain Support, 90 mm YY2209059 Support Legs |
产品性质
| Quality Level【质量水平】 | 100 |
| material【物料】 | 316 stainless steel PTFE seal anodized aluminum leg(s) |
| parameter【参数】 | 19 bar max. inlet pressure (275 psi) 5 bar max. differential pressure (75 psid) |
| H【高度】 | 17.1 cm , plus inlet connector |
| diam.【直径】 | 12.1 cm |
| filter diam.【过滤器直径】 | 90 mm |
| filtration area【过滤面积】 | 45.5 cm2 |
| prefilter diam. | 75 mm |
| weight【重量】 | 2.8 kg (6.2 lb) |
| fitting【配件】 | connector for 9.5 mm I.D. hose |
| application(s) | filtration |
| compatibility【相容性】 | for use with Standing Stainless Steel Filter Holder |
| shipped in【运输】 | ambient |
产品说明
| 【免责声明】 | 压力 |
安全信息
| Storage Class Code【储存分类代码】 | 10-13 - German Storage Class 10 to 13 |
