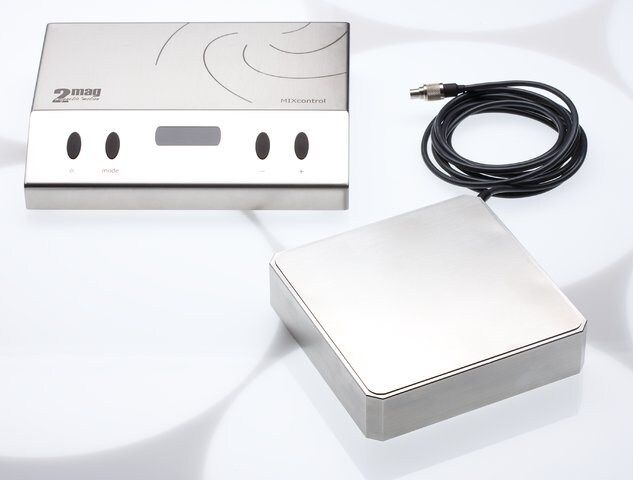

2MAG steriMIXdrive, Steam, pressure and vacuum resistant stirrer for viscous material, use with steriMIXcontrol unit
基本信息
| NACRES | NB.72 |
| General description【一般描述】 | Ultra flat, compact and strong magnetic stirrer, up to 40 litres stirring volume, also suitable for highly viscous media. Very strong magnetic coupling by SmCo-magnets, therefore predestined for magnetic power transmission over wide distances or for thick vessel bottoms. Maintenance-free 2mag-motor-drive with large speed range from 100 up to 1,200 rpm. Fully encapsulated, pressure- and vacuum resistant stainless steel housing, IP68, temperature resistant up to +150 C, extremely robust construction and performance, easy to clean and firm. |
| Other Notes【其他说明】 | Please order control unit Z742363 separately! |
产品性质
| AC/DC input | 24 V |
| material【物料】 | stainless steel (PPSU, hermetically closed) stainless steel plate |
| feature【特点】 | positions 1 |
| packaging【包装】 | pack of 1 ea |
| manufacturer/tradename | 2mag 40700 |
| parameter【参数】 | -10-150 ℃ temp. limit (at 100% humidity) 100-1200 rpm speed |
| W × D × H【宽度 × 直径 × 高度】 | 140 mm × 140 mm × 32 mm |
| capacity【容量】 | 1-40 L |
| plate size × W × L | × 140 mm × 140 mm |
| weight【重量】 | 9.0 kg |
