您的位置：首页 > 产品中心 > FK 269 Co(II) TFSI salt
产品别名

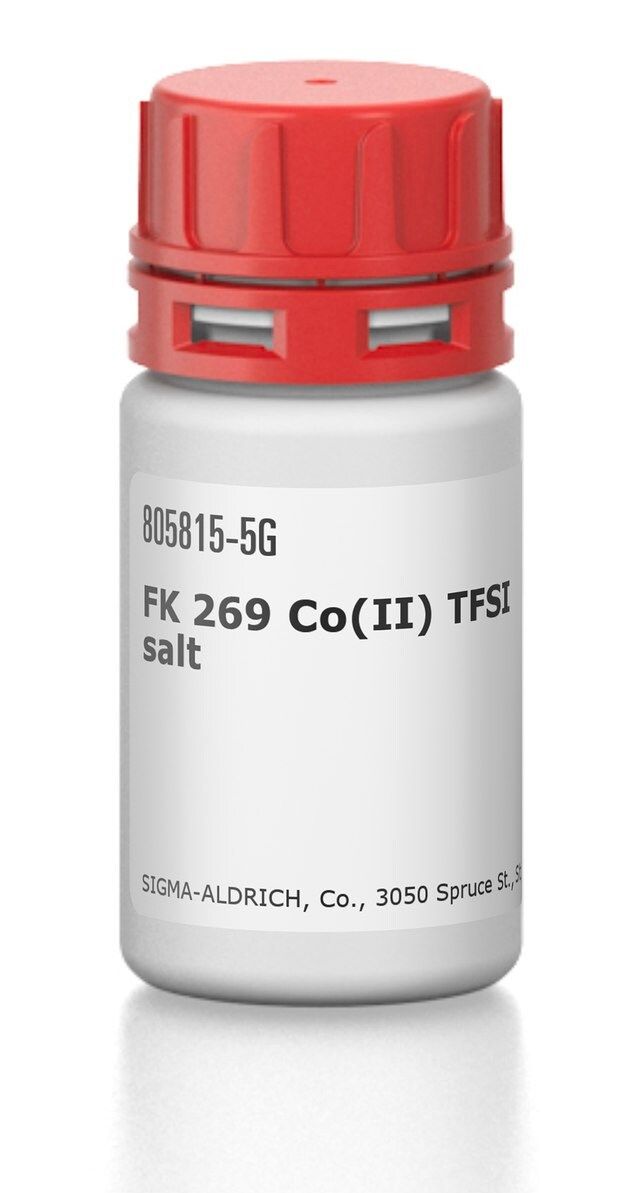

FK 269 Co(II) TFSI salt
bis(2,6-di(1H-pyrazol-1-yl)pyridine)cobalt(II) di[bis(trifluoromethane)sulfonimide]
结构式
基本信息
| Empirical Formula【经验(实验)分子式】 | C26H18CoN12O8S4F12 |
| Molecular weight | 1041.67 |
| PubChem Substance ID【PubChem化学物质编号】 | 329768962 |
| Application【应用】 | Use this cobalt complexes to increase photovoltages of liquid electrolyte cells substantially or to achieve ultrahigh performance with solid state photovoltaic devices, such as perovskite and dye-sensitized solar cells. FK 269 cobalt complexes offer guaranteed performance, high reproducibility, consistent results, and are of highest purity. In comparison to triiodide-based redox electrolytes, cobalt complexes in general increase photovoltages and, particularly at lower light levels (e.g. for indoor applications), significantly increase device power output. |
| Legal Information【法律信息】 | Product of Dyesol® Dyesol is a registered trademark of Greatcell Solar |
产品性质
| Assay【测定】 | 98% |
| Quality Level【质量水平】 | 100 |
| form【形式】 | powder |
| mp | 188 ℃ |
| SMILES string | O=S([N-]S(=O)(C(F)(F)F)=O)(C(F)(F)F)=O.O=S([N-]S(=O)(C(F)(F)F)=O)(C(F)(F)F)=O.C1(N2N=CC=C2)=CC=CC(N3C=CC=N3)=N1.N4(C5=NC(N6N=CC=C6)=CC=C5)N=CC=C4.[Co+2] |
| InChI | 1S/2C11H9N5.2C2F6NO4S2.Co/c2*1-4-10(15-8-2-6-12-15)14-11(5-1)16-9-3-7-13-16;2*3-1(4,5)14(10,11)9-15(12,13)2(6,7)8;/h2*1-9H;;;/q;;2*-1;+2 |
| InChI key | IYOKUFSLXXBXHL-UHFFFAOYSA-N |
| packaging【包装】 | 5 g in poly bottle |
安全信息
| Pictograms【象形图】 | GHS07 |
| Signal word【警示用语：】 | Warning |
| Hazard Statements | H315 - H317 - H319 - H335 |
| Precautionary Statements | P280 - P302 + P352 - P305 + P351 + P338 |
| Hazard Classifications【危险分类】 | Eye Irrit. 2 - Skin Irrit. 2 - Skin Sens. 1 - STOT SE 3 |
| Target Organs【靶器官】 | Respiratory system |
| Storage Class Code【储存分类代码】 | 11 - Combustible Solids |
| WGK | WGK 3 |
